Sumitomo

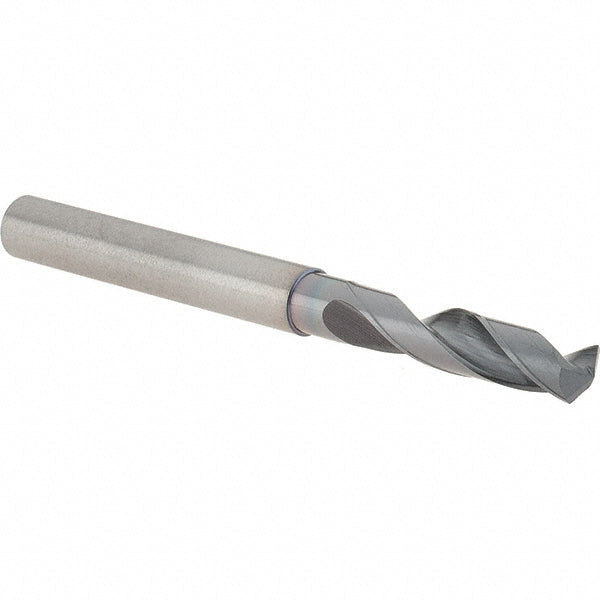

#3 Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101056
MFR# U101056Series MDW-GS
$65.94List $79.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101056 is a #3 Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2130
Drill bit size range0.2000 to 0.2500
Drill bit size wire#3
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0441
Flute by diameter ratio2xD
Flute length0.9843
Maximum drilling depth0.6648
Number of flutes2
Overall length2.5591
Primary workpiece materialCast Iron; Steel
Shank length1.4961
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
