Sumitomo

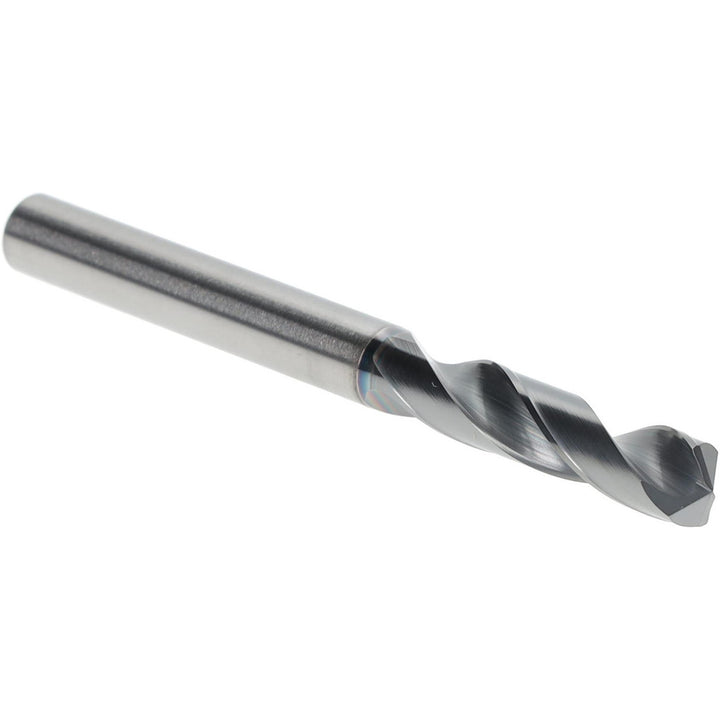

15/64" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101064
MFR# U101064Series MDW-GS
$87.23List $102.78
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
Description
The Sumitomo U101064 is a 15/64" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, steel. 1-1/16 flute length. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in15/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0485
Flute by diameter ratio2xD
Flute length in1-1/16
Maximum drilling depth0.7116
Number of flutes2
Overall length2.5591
Primary workpiece materialCast Iron; Steel
Shank diameter0.2344
Shank length1.4961
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
