Sumitomo

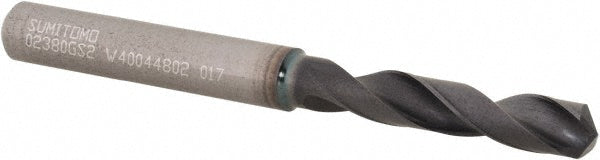

0.2380" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101066
MFR# U101066Series MDW-GS
$76.88List $92.34
Save 16%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101066 is a 0.2380" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2380
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0489
Flute by diameter ratio2xD
Flute length1.2205
Maximum drilling depth0.8632
Number of flutes2
Overall length2.8740
Primary workpiece materialCast Iron; Steel
Shank length1.5748
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
