Sumitomo

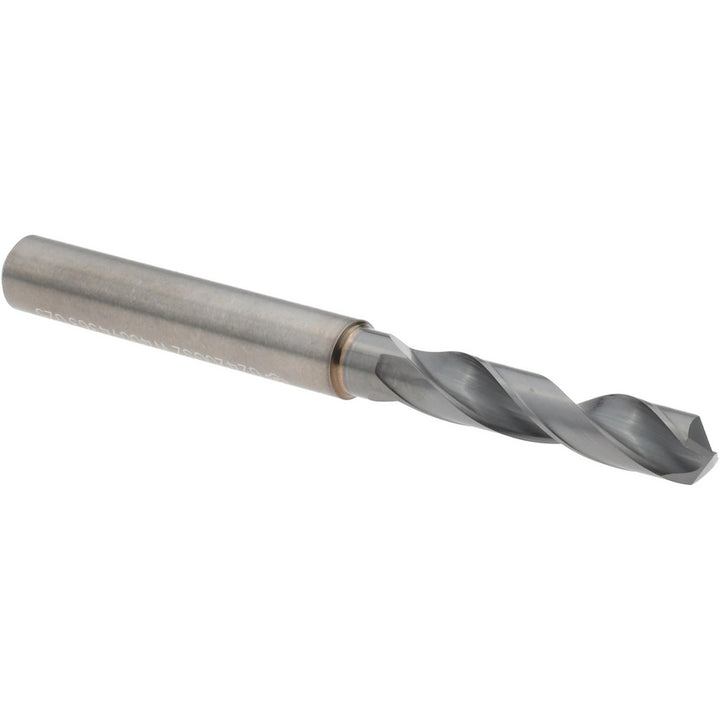

Letter C Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101067
MFR# U101067Series MDW-GS
$76.88List $92.34
Save 16%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U101067 is a Letter C Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2420
Drill bit size letterC
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0500
Flute by diameter ratio2xD
Flute length1.2205
Maximum drilling depth0.8573
Number of flutes2
Overall length2.874
Primary workpiece materialCast Iron; Steel
Shank diameter0.2812
Shank length1.5748
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
