Sumitomo

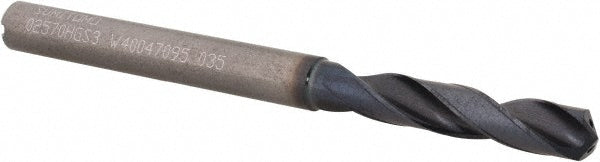

Letter F Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101076
MFR# U101076Series MDW-HGS
$102.54List $122.96
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101076 is a Letter F Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0532
Flute by diameter ratio3xD
Flute length1.3780
Maximum drilling depth0.9925
Number of flutes2
Number of margins2
Overall length3.4646
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank length2.0866
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
