Sumitomo

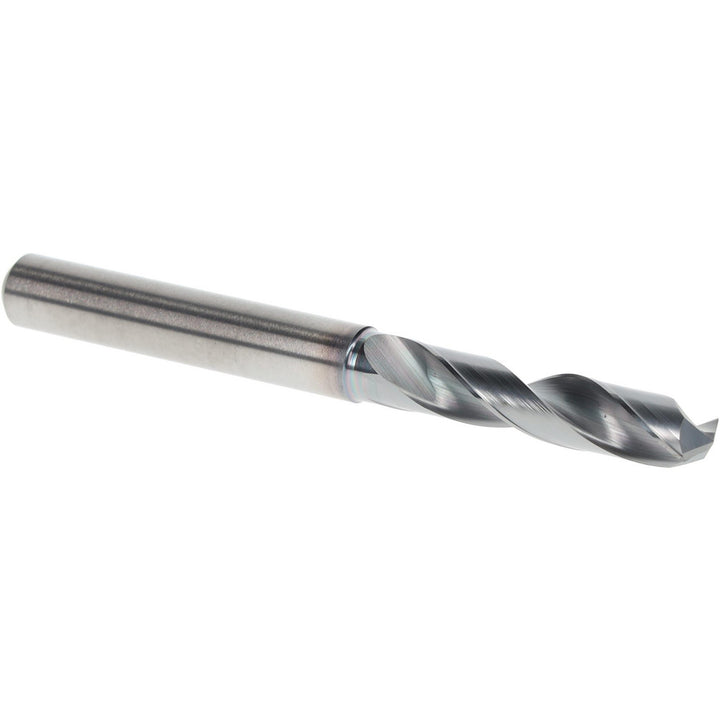

0.2610" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101078
MFR# U101078Series MDW-GS
$80.83List $96.92
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U101078 is a 0.2610" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2610
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0542
Flute by diameter ratio2xD
Flute length1.2992
Maximum drilling depth0.9077
Number of flutes2
Overall length2.874
Primary workpiece materialCast Iron; Steel
Shank diameter0.2812
Shank length1.5748
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
