Sumitomo

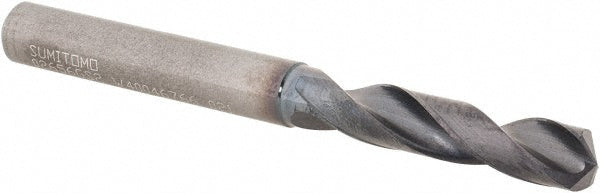

17/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101080
MFR# U101080Series MDW-GS
$80.83List $96.92
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingCoated
Description
The Sumitomo U101080 is a 17/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in17/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0550
Flute by diameter ratio2xD
Flute length1.2992
Maximum drilling depth0.9006
Number of flutes2
Overall length2.8740
Primary workpiece materialCast Iron; Steel
Shank length1.5748
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
