Sumitomo
0.2810" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101095
MFR# U101095Series MDW-GS
$112.42List $132.46
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

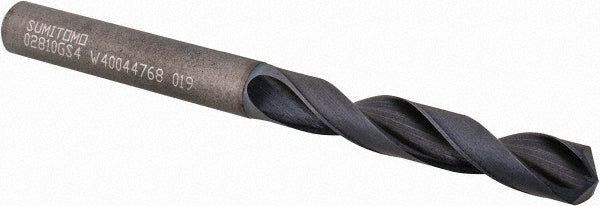

The Sumitomo U101095 is a 0.2810" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.2810
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length0.0582
Flute by diameter ratio4xD
Flute length1.6929
Number of flutes2
Overall length3.2677
Primary workpiece materialCast Iron; Steel
Shank diameter0.2812
Shank length1.5748
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
