Sumitomo

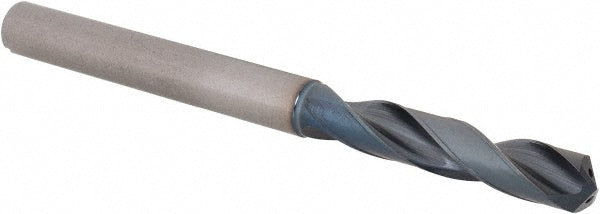

19/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101105
MFR# U101105Series MDW-HGS
$135.65List $138.94
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/64
Flutes2
CoatingCoated
Description
The Sumitomo U101105 is a 19/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size in19/64
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0615
Flute by diameter ratio3xD
Flute length1.5748
Maximum drilling depth1.1295
Number of flutes2
Number of margins2
Overall length3.7008
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank length2.1260
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
