Sumitomo

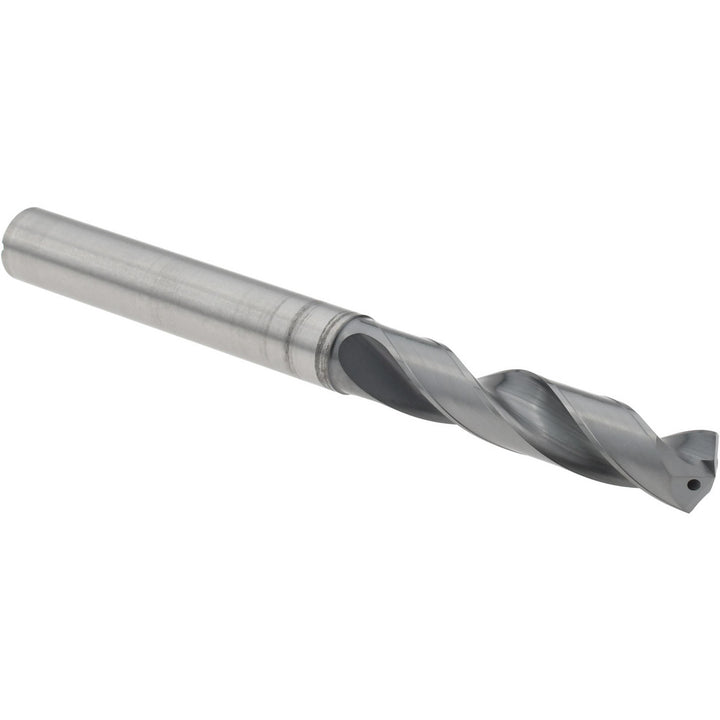

11/32" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101130
MFR# U101130Series MDW-HGS
$138.94List $169.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
Description
The Sumitomo U101130 is a 11/32" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size in11/32
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0712
Flute by diameter ratio3xD
Flute length1.7717
Maximum drilling depth1.2560
Number of flutes2
Number of margins2
Overall length3.937
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3594
Shank length2.1654
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
