Sumitomo

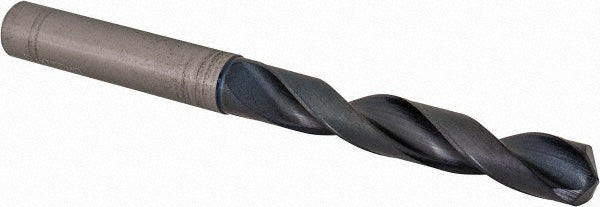

0.3480" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101133
MFR# U101133Series MDW-GS
$116.51List $139.72
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U101133 is a 0.3480" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.3480
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Drill point length0.0709
Flute by diameter ratio4xD
Flute length2.1654
Number of flutes2
Overall length3.8583
Primary workpiece materialCast Iron; Steel
Shank diameter0.3594
Shank length1.6929
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
