Sumitomo

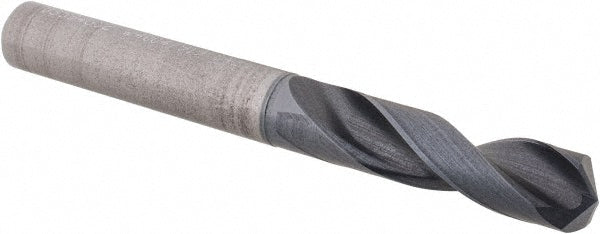

23/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101136
MFR# U101136Series MDW-GS
$107.30List $128.67
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
CoatingCoated
Description
The Sumitomo U101136 is a 23/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0744
Flute by diameter ratio2xD
Flute length1.4961
Maximum drilling depth0.9569
Number of flutes2
Overall length3.2283
Primary workpiece materialCast Iron; Steel
Shank length1.7323
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
