Sumitomo

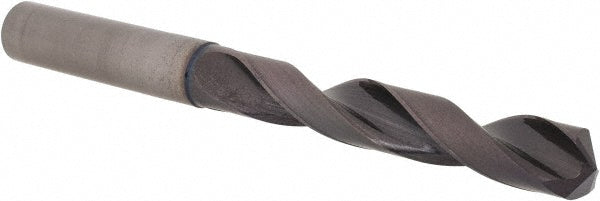

27/64" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101167
MFR# U101167Series MDW-GS
$173.08List $207.55
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
Description
The Sumitomo U101167 is a 27/64" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0874
Flute by diameter ratio4xD
Flute length2.6772
Number of flutes2
Overall length4.4882
Primary workpiece materialCast Iron; Steel
Shank diameter in7/16
Shank length1.8110
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
