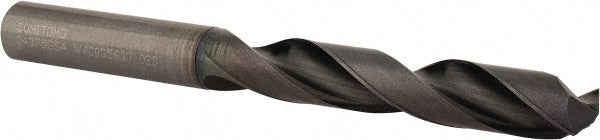

7/16" Solid Carbide Mechanics Drill Bit, TiAlCr/TiSi, 135° point - Sumitomo U101170

Sumitomo

7/16" Solid Carbide Mechanics Drill Bit, TiAlCr/TiSi, 135° point - Sumitomo U101170

MFR# U101170Series MDW-GS4

$173.08List $207.55 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
CoatingTiAlCr/TiSi

Description

The Sumitomo U101170 is a 7/16" Solid Carbide Mechanics drill bit with a TiAlCr/TiSi finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series MDW-GS4.

Specifications

Coating finishTiAlCr/TiSi
Coolant throughNo
Drill bit size in7/16
Drill length typeMechanics
Drill point angle135
Flute length2.6772
Number of pieces1
Overall length4.4882
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in7/16
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
