Sumitomo

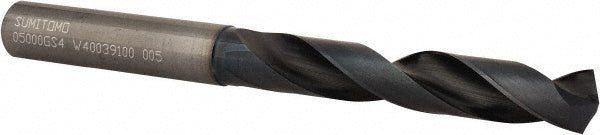

1/2" Solid Carbide Mechanics Drill Bit, TiAlCr/TiSi, 135° point - Sumitomo U101185
MFR# U101185Series MDW-GS4
$224.55List $269.27
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
CoatingTiAlCr/TiSi
Description
The Sumitomo U101185 is a 1/2" Solid Carbide Mechanics drill bit with a TiAlCr/TiSi finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series MDW-GS4.
Specifications
Coating finishTiAlCr/TiSi
Coolant throughNo
Drill bit size in1/2
Drill length typeMechanics
Drill point angle135
Flute length3.0709
Number of pieces1
Overall length5.3937
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.5156
Tool materialSolid Carbide
Tool performanceHigh Performance
Web configurationTapered
