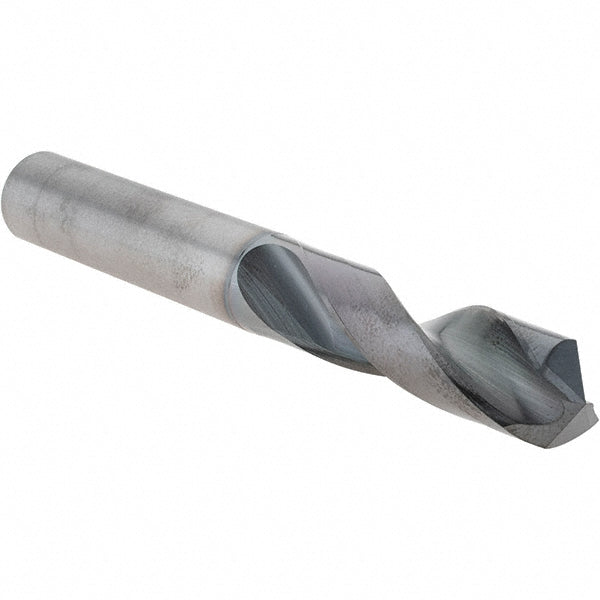

33/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101192
MFR# U101192Series MDW-GS
$213.37List $255.86
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
CoatingCoated
Description
The Sumitomo U101192 is a 33/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in33/64
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1068
Flute by diameter ratio2xD
Flute length1.9291
Maximum drilling depth1.1561
Number of flutes2
Overall length3.9370
Primary workpiece materialCast Iron; Steel
Shank length2.0079
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
