Sumitomo

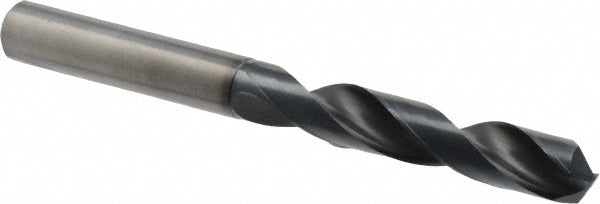

33/64" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101193
MFR# U101193Series MDW-GS
$224.55List $269.27
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
Description
The Sumitomo U101193 is a 33/64" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1068
Flute by diameter ratio4xD
Flute length3.0709
Number of flutes2
Overall length5.3937
Primary workpiece materialCast Iron; Steel
Shank diameter0.5156
Shank length2.3228
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
