Sumitomo

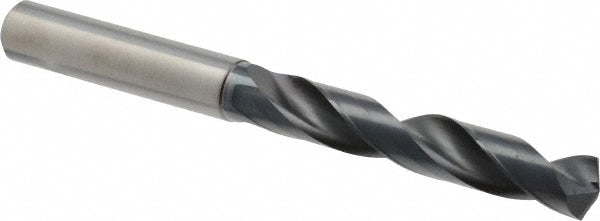

17/32" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101198
MFR# U101198Series MDW-GS
$224.55List $269.27
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
Description
The Sumitomo U101198 is a 17/32" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1100
Flute by diameter ratio4xD
Flute length3.3071
Number of flutes2
Overall length5.7874
Primary workpiece materialCast Iron; Steel
Shank diameter0.5469
Shank length2.4016
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
