Sumitomo

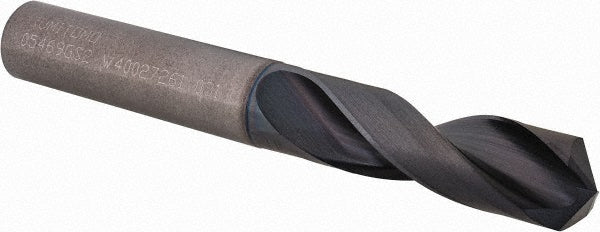

35/64" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101200
MFR# U101200Series MDW-GS
$213.37List $255.86
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size35/64
Flutes2
CoatingCoated
Description
The Sumitomo U101200 is a 35/64" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in35/64
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1133
Flute by diameter ratio2xD
Flute length2.0472
Maximum drilling depth1.2270
Number of flutes2
Overall length4.1339
Primary workpiece materialCast Iron; Steel
Shank length2.0866
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
