Sumitomo

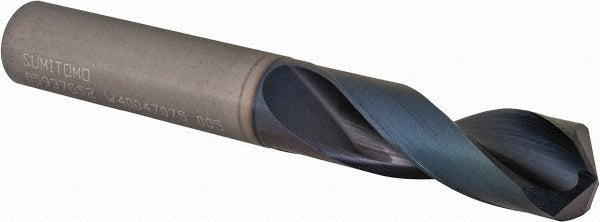

19/32" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101211
MFR# U101211Series MDW-GS
$263.99List $316.56
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size19/32
Flutes2
CoatingCoated
Description
The Sumitomo U101211 is a 19/32" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in19/32
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1230
Flute by diameter ratio2xD
Flute length2.0866
Maximum drilling depth1.1961
Number of flutes2
Overall length4.2520
Primary workpiece materialCast Iron; Steel
Shank length2.1654
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
