Sumitomo

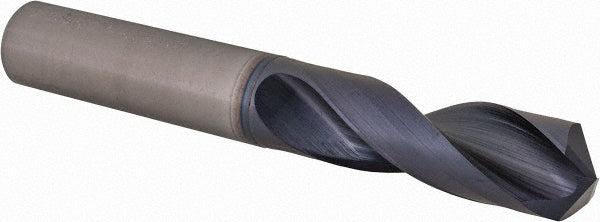

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101219
MFR# U101219Series MDW-GS
$263.99List $316.56
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated
Description
The Sumitomo U101219 is a 5/8" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size in5/8
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1294
Flute by diameter ratio2xD
Flute length2.1654
Maximum drilling depth1.2276
Number of flutes2
Overall length4.4094
Primary workpiece materialCast Iron; Steel
Shank length2.2441
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
