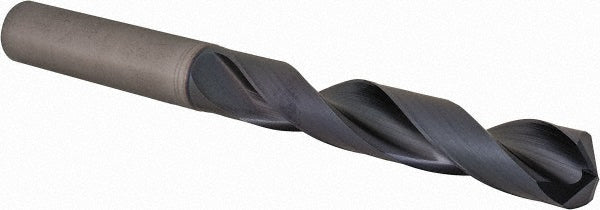

5/8" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U101220
MFR# U101220Series MDW-GS
$279.91List $335.65
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
Description
The Sumitomo U101220 is a 5/8" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1294
Flute by diameter ratio4xD
Flute length3.7795
Number of flutes2
Overall length6.2992
Primary workpiece materialCast Iron; Steel
Shank diameter in5/8
Shank length2.5197
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
