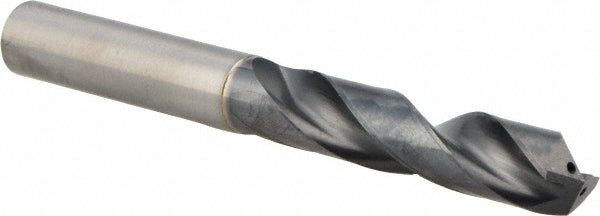

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101221

Sumitomo

5/8" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101221

MFR# U101221Series MDW-HGS

$312.32List $381.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated

Description

The Sumitomo U101221 is a 5/8" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size in5/8
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1294
Flute by diameter ratio3xD
Flute length3.1496
Maximum drilling depth2.2125
Number of flutes2
Number of margins2
Overall length5.7480
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank length2.5984
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
