Sumitomo

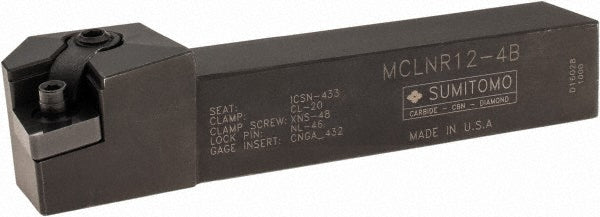

Indexable Turning & Profiling - Sumitomo U101624
MFR# U101624Series Multi-Option
$116.06
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U101624 indexable turning & profiling. Suited for universal. Series Multi-Option.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCN43
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationFacing; Milling; Turning
Hand of holderRight Hand
Head length1.0000
Insert compatibilityCNMG 432
Insert holding methodClamp; Pin
Insert inscribed circle in1/2
Insert thickness0.1875
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-5
Shank height in3/4
Shank width in3/4
Toolholder styleMCLN
