Sumitomo

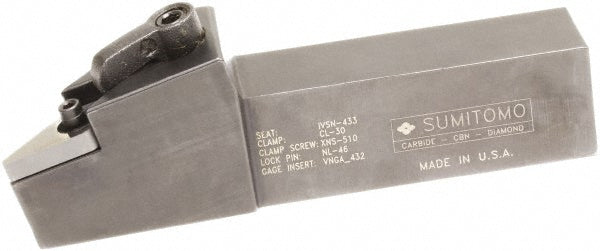

Indexable Turning & Profiling - Sumitomo U101720
MFR# U101720Series Multi-Option
$180.30
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U101720 indexable turning & profiling. Suited for universal. Series Multi-Option.
Specifications
Back of bar to cutting edge1.6870
Compatible insert size codeVN33
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationMilling; Turning
Hand of holderRight Hand
Head length1.2500
Insert compatibilityVNMG 332
Insert holding methodClamp; Pin
Insert inscribed circle in3/8
Insert thickness0.1875
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-9
Shank height in1
Shank width in1
Toolholder styleMVJN
