Sumitomo
Indexable Turning & Profiling - Sumitomo U101726
MFR# U101726Series Multi-Option
$180.30
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

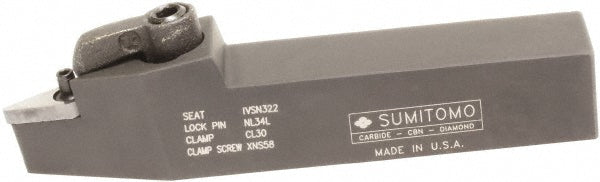

The Sumitomo U101726 indexable turning & profiling. Suited for universal. Series Multi-Option.
Specifications
Back of bar to cutting edge1.8000
Compatible insert size codeVN33
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationMilling; Turning
Hand of holderNeutral
Head length1.6200
Insert compatibilityVNMG 332
Insert holding methodClamp; Pin
Insert inscribed circle in3/8
Insert thickness0.1875
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-4
Shank height in1
Shank width in1
Toolholder styleMVVN
