Sumitomo

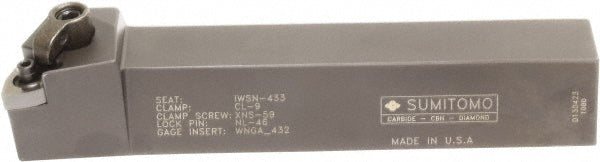

Indexable Turning & Profiling - Sumitomo U101738
MFR# U101738Series Multi-Option
$118.99
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U101738 indexable turning & profiling. Suited for universal. Series Multi-Option.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeWN33
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationUndercutting
Hand of holderRight Hand
Head length1.2500
Insert compatibilityWNMG 332
Insert holding methodClamp; Pin
Insert inscribed circle in3/8
Insert thickness0.1875
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-5
Shank height in1
Shank width in1
Toolholder styleMWLN
