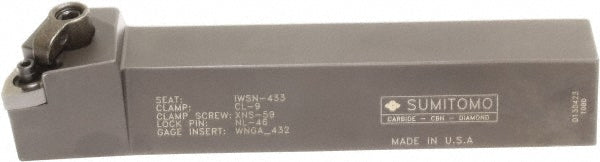

Indexable Turning & Profiling - Sumitomo U101740
MFR# U101740Series Multi-Option
$118.99
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sumitomo U101740 indexable turning & profiling. Series Multi-Option.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeWNMG 432
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.2500
Insert compatibilityWNMG 432
Insert holding methodClamp; Pin
Multi use toolNo
Overall length in6
RakeNegative
Rake angle-5
Shank height in1
Shank width in1
Toolholder styleMWLN
