Sumitomo

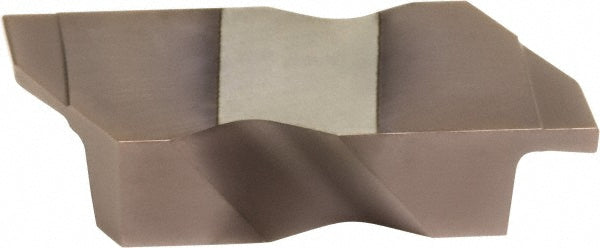

ISO 13399 Carbide Insert, Grade EH520V, TiAlN - Sumitomo U102053
MFR# U102053ISO/ANSI# ISO 13399Series SumiNotch
$25.50List $26.34
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeEH520V
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo U102053 is a ISO 13399 carbide indexable insert, grade EH520V, TiAlN coated. Suited for universal.
Specifications
Ansi codeSG-2047R
Coating finishTiAlN
Corner radius0.0020 - 0.0050
Cutting height0.2190
Cutting width0.047
Full radiusNo
Gage diameter0.1875
Insert handNeutral
Insert materialCarbide
Insert size2047
Insert size code2047
Insert styleSG
Iso codeISO 13399
Lead angle3
Manufacturer gradeEH520V
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall width0.15
Primary workpiece materialUniversal
StandardsANSI; ISO 13399
