Sumitomo

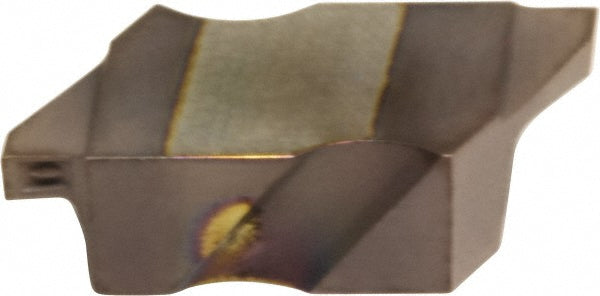

ISO 13399 Solid Carbide Insert, Grade EH520V, TiAlN - Sumitomo U102076
MFR# U102076ISO/ANSI# ISO 13399Series SumiNotch
$25.50List $26.34
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeEH520V
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo U102076 is a ISO 13399 solid carbide indexable insert, grade EH520V, TiAlN coated. Suited for universal.
Specifications
Ansi codeSG-3062R-CB
Chip breakerCB
Coating finishTiAlN
Corner radius0.0050 to 0.0100
Cutting height0.3440
Cutting width0.0620
Full radiusNo
Gage diameter0.3750
Insert handNeutral
Insert materialSolid Carbide
Insert size3062
Insert size code3062
Insert styleSG
Iso codeISO 13399
Lead angle3
Manufacturer gradeEH520V
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0050
Multi use toolNo
Overall width0.1950
Primary workpiece materialUniversal
StandardsANSI; ISO 13399
