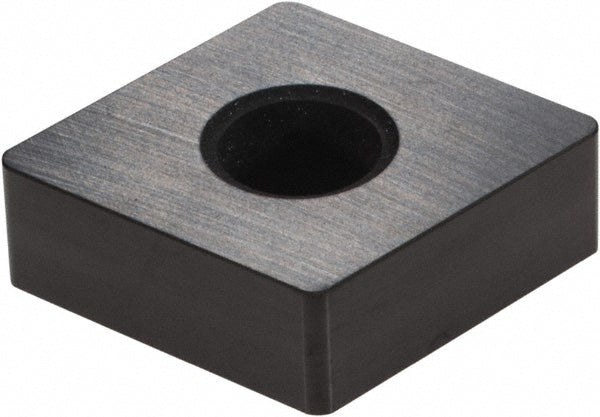

CNGA 120408 Ceramic Insert, Grade NB90S, Al2O3 - Sumitomo U103424
MFR# U103424ISO/ANSI# CNGA 120408Series C
$14.24List $18.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeNB90S
MaterialCeramic
CoatingAl2O3
Description
The Sumitomo U103424 is a CNGA 120408 ceramic indexable insert, grade NB90S, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeCNGA432
Chip breakerA
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 120408
Manufacturer gradeNB90S
Material gradeC4; C8
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
