Sumitomo

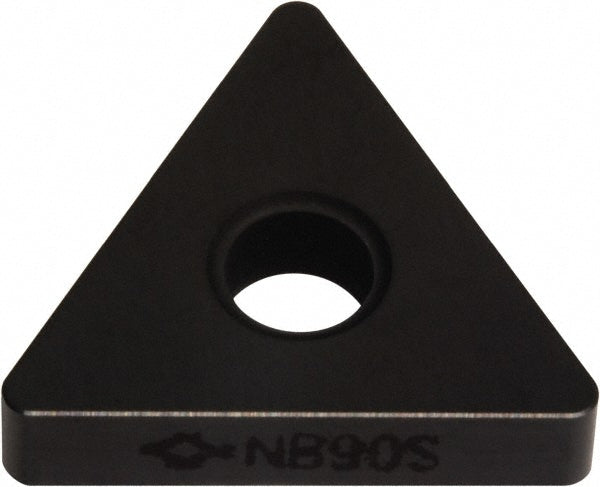

Triangle 3/8" IC Ceramic Insert, Grade NB90S - Sumitomo U103469
MFR# U103469Series TNGA
$10.29List $13.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeNB90S
MaterialCeramic
Description
The Sumitomo U103469 is a ceramic indexable insert, grade NB90S. Suited for cast iron.
Specifications
Ansi codeTNGA322
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert materialCeramic
Insert shapeTriangle
Insert size code322
Insert styleTNGA
Insert thickness in1/8
Manufacturer gradeNB90S
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
