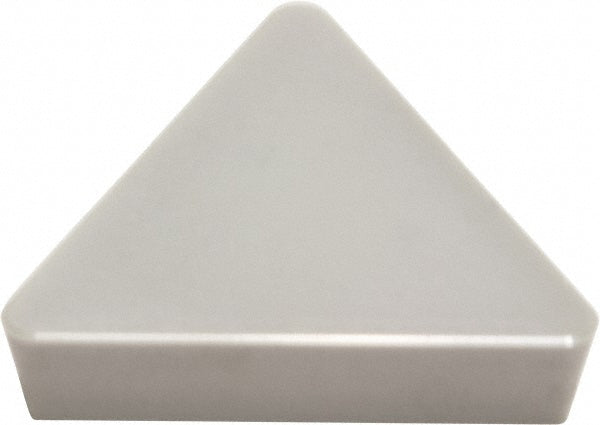

TPGN220408 Ceramic Insert, Grade NB90S - Sumitomo U103480
MFR# U103480ISO/ANSI# TPGN220408Series T
$20.40List $25.71
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeNB90S
MaterialCeramic
Description
The Sumitomo U103480 is a TPGN220408 ceramic indexable insert, grade NB90S. Suited for cast iron.
Specifications
Chip breakerN
Clearance codeP
Coating processUncoated
Corner radius in1/32
Included angle60
Inscribed circle in1/2
Insert holding methodClamp
Insert length0.1260
Insert materialCeramic
Insert shapeTriangle
Insert size code222
Insert styleTPGN
Insert thickness in3/16
Iso codeTPGN220408
Manufacturer gradeNB90S
Number of cutting edges1
Primary workpiece materialCast Iron
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
