Sumitomo

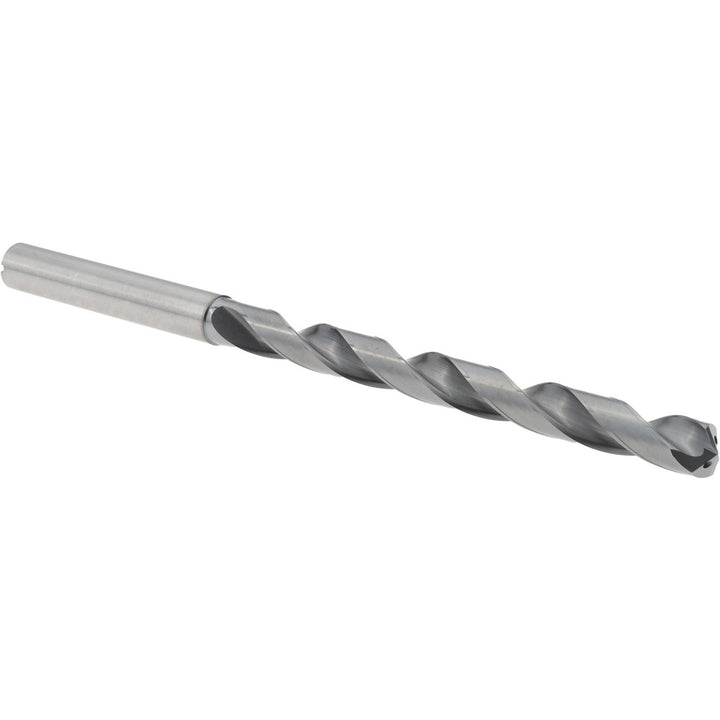

1/8" Solid Carbide Drill Bit, DEX, 135° point - Sumitomo U103677
MFR# U103677Series MDW-HGS
$115.40List $138.38
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingDEX
Description
The Sumitomo U103677 is a 1/8" Solid Carbide drill bit with a DEX finish, 135° point. Series MDW-HGS.
Specifications
Coating finishDEX
Coolant throughYes
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit size in1/8
Drill point angle degrees135
Flute length1.2992
Flute length x diameter ratio8xD
Flute typeJ-Flute
Overall length3
Shank diameter0.1250
Shank length1.8898
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Web configurationTapered
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
