Sumitomo

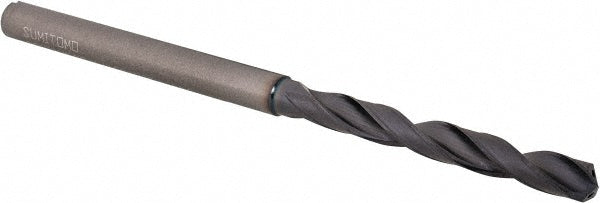

#3 Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103691
MFR# U103691Series MDW-HGS
$139.60List $164.48
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U103691 is a #3 Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.2130
Drill bit size range0.2000 - 0.2500
Drill bit size wire#3
Drill point angle degrees135
Drill point length0.0441
Flute by diameter ratio5xD
Flute length1.7323
Number of flutes2
Overall length3.9370
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2344
Shank length2.1260
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
