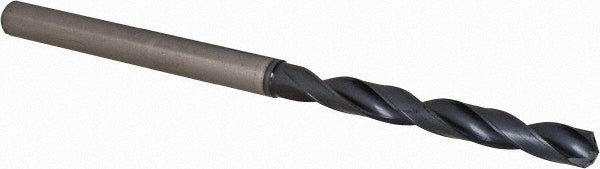

7/32" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103693

Sumitomo

7/32" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103693

MFR# U103693Series MDW-HGS

$105.51List $126.52 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2

Description

The Sumitomo U103693 is a 7/32" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Drill point length0.0453
Flute by diameter ratio5xD
Flute length1.8898
Number of flutes2
Overall length3.9370
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2344
Shank length2.0472
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
