Sumitomo

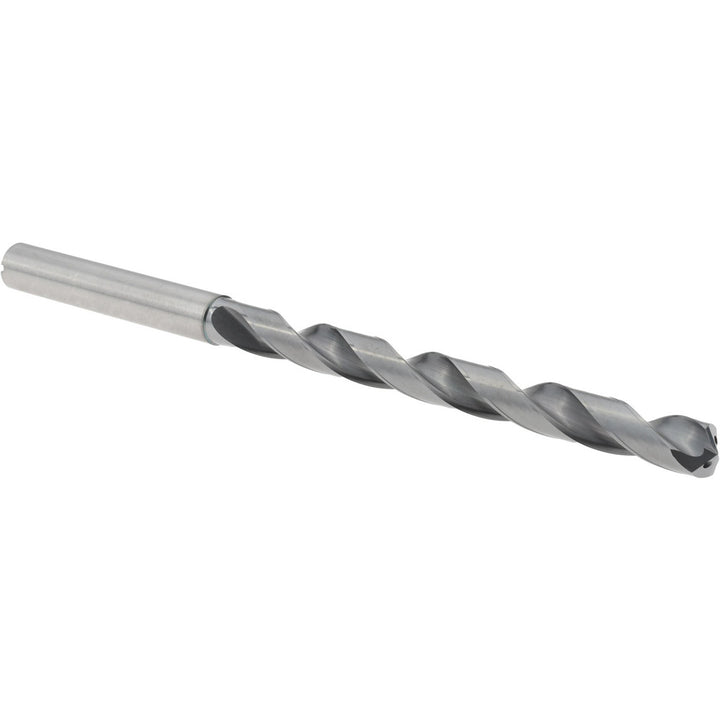

7/32" Solid Carbide Drill Bit, DEX, 135° point - Sumitomo U103694
MFR# U103694Series MDW-HGS
$115.40List $138.38
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/32
CoatingDEX
Description
The Sumitomo U103694 is a 7/32" Solid Carbide drill bit with a DEX finish, 135° point. Series MDW-HGS.
Specifications
Coating finishDEX
Coolant throughYes
Drill bit diameter tolerance+0.00000 to -0.00071 in
Drill bit size in7/32
Drill point angle degrees135
Flute length2.5984
Flute length x diameter ratio8xD
Flute typeJ-Flute
Overall length4-2/4
Shank diameter in15/64
Shank length2.0472
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Web configurationTapered
