Sumitomo

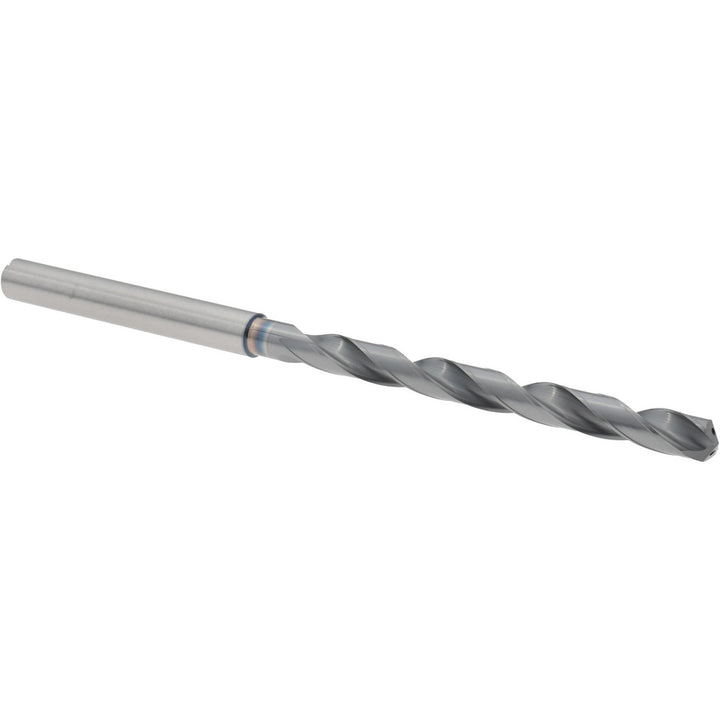

1/4" Solid Carbide Drill Bit, DEX, 135° point - Sumitomo U103700
MFR# U103700Series MDW-HGS
$233.65List $239.30
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
CoatingDEX
Description
The Sumitomo U103700 is a 1/4" Solid Carbide drill bit with a DEX finish, 135° point. Series MDW-HGS.
Specifications
Coating finishDEX
Coolant throughYes
Drill bit diameter tolerance+0.00000 to -0.00087 in
Drill bit size in1/4
Drill bit size letterE
Drill point angle degrees135
Flute length2.8150
Flute length x diameter ratio8xD
Flute typeJ-Flute
Overall length5
Shank diameter0.2812
Shank length2.0866
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Web configurationTapered
