Sumitomo

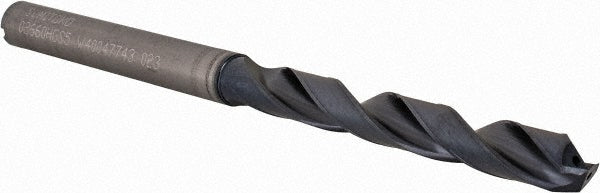

Letter H Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103705
MFR# U103705Series MDW-HGS
$160.23List $164.11
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U103705 is a Letter H Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.2660
Drill bit size letterH
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length0.0551
Flute by diameter ratio5xD
Flute length2.2047
Number of flutes2
Overall length4.2913
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2812
Shank length2.0866
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
