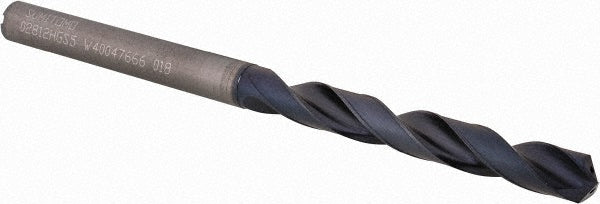

9/32" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103711
MFR# U103711Series MDW-HGS
$160.23List $188.80
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
Description
The Sumitomo U103711 is a 9/32" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length0.0582
Flute by diameter ratio5xD
Flute length2.2047
Number of flutes2
Overall length4.2913
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2812
Shank length2.0866
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
