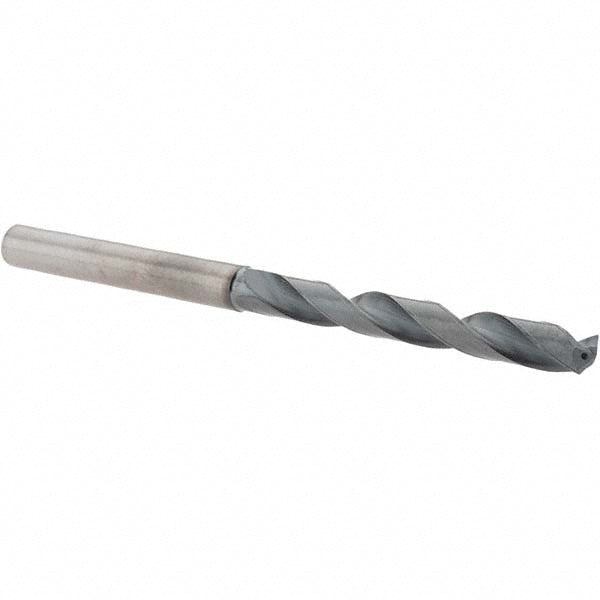

19/64" Solid Carbide Drill Bit, TiAlCr, 135° point - Sumitomo U103713

Sumitomo

19/64" Solid Carbide Drill Bit, TiAlCr, 135° point - Sumitomo U103713

MFR# U103713Series MDW-HGS

$121.11List $145.23 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size19/64
Flutes2
CoatingTiAlCr

Description

The Sumitomo U103713 is a 19/64" Solid Carbide drill bit with a TiAlCr finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coating finishTiAlCr
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit materialSolid Carbide
Drill bit size in19/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length0.0615
Flute by diameter ratio5xD
Flute length2.5197
Number of flutes2
Overall length4.6457
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in5/16
Shank length2.1260
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
