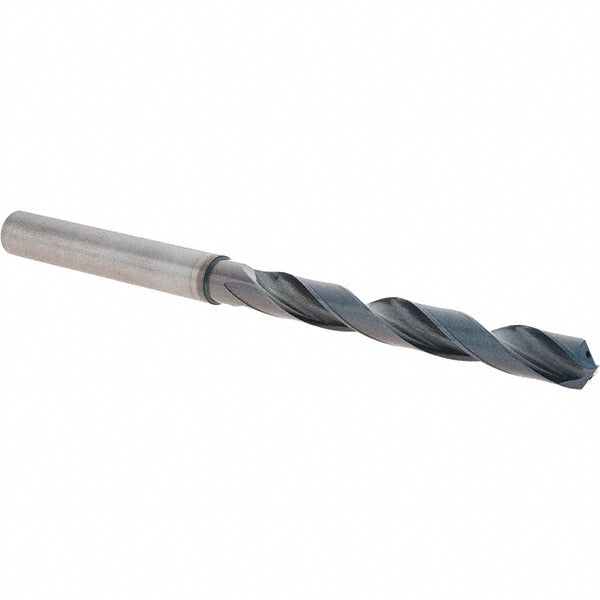

Letter P Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103717
MFR# U103717Series MDW-HGS
$175.55List $210.50
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U103717 is a Letter P Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.3230
Drill bit size letterP
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Drill point length0.0669
Flute by diameter ratio5xD
Flute length2.6772
Number of flutes2
Overall length5.0000
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3594
Shank length2.1654
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
