Sumitomo

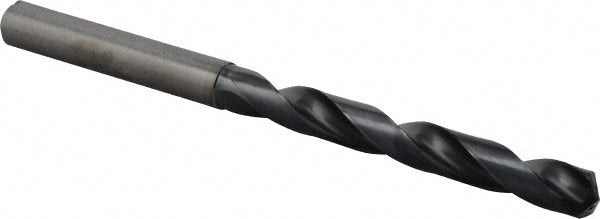

27/64" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103734
MFR# U103734Series MDW-HGS
$239.68List $287.41
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
Flutes2
Description
The Sumitomo U103734 is a 27/64" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0874
Flute by diameter ratio5xD
Flute length3.4646
Number of flutes2
Overall length5.8661
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in7/16
Shank length2.4016
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
