Sumitomo

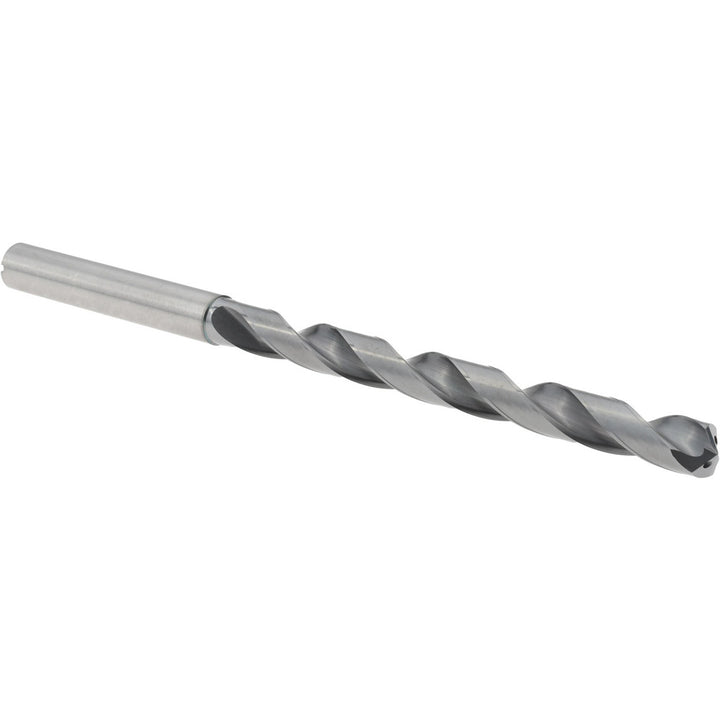

27/64" Solid Carbide Drill Bit, DEX, 135° point - Sumitomo U103735
MFR# U103735Series MDW-HGS
$352.04List $422.14
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
CoatingDEX
Description
The Sumitomo U103735 is a 27/64" Solid Carbide drill bit with a DEX finish, 135° point. Series MDW-HGS.
Specifications
Coating finishDEX
Coolant throughYes
Drill bit diameter tolerance+0.00000 to -0.00106 in
Drill bit size in27/64
Drill point angle degrees135
Flute length4.7638
Flute length x diameter ratio8xD
Flute typeJ-Flute
Overall length7
Shank diameter0.4375
Shank length2.4016
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Web configurationTapered
