Sumitomo

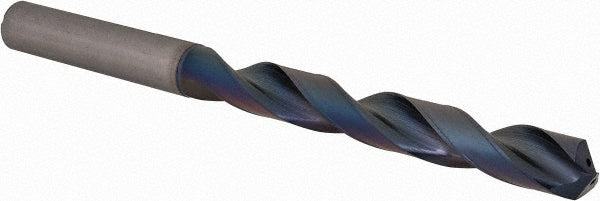

33/64" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103746
MFR# U103746Series MDW-HGS
$484.54List $570.92
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
Description
The Sumitomo U103746 is a 33/64" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1068
Flute by diameter ratio5xD
Flute length4.0945
Number of flutes2
Overall length6.5748
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.5156
Shank length2.4803
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
