Sumitomo

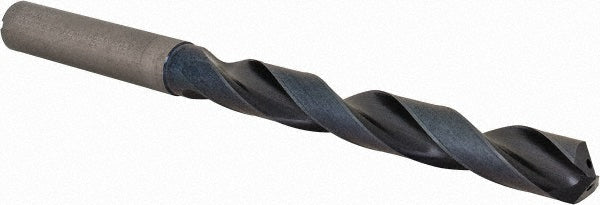

17/32" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103748
MFR# U103748Series MDW-HGS
$317.41List $380.61
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
Description
The Sumitomo U103748 is a 17/32" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1100
Flute by diameter ratio5xD
Flute length4.2520
Number of flutes2
Overall length6.9291
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.5469
Shank length2.5197
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
