Sumitomo

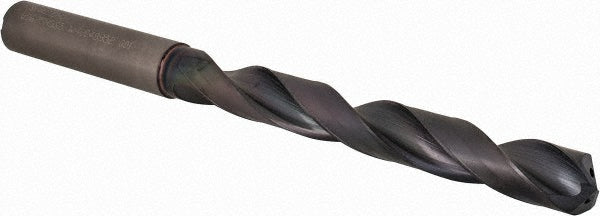

9/16" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103752
MFR# U103752Series MDW-HGS
$410.17List $491.84
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
Description
The Sumitomo U103752 is a 9/16" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1165
Flute by diameter ratio5xD
Flute length4.5669
Number of flutes2
Overall length7.2835
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.5937
Shank length2.5591
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
