Sumitomo

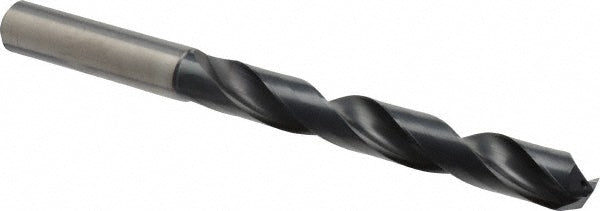

5/8" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo U103760
MFR# U103760Series MDW-HGS
$410.17List $491.84
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
Description
The Sumitomo U103760 is a 5/8" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1294
Flute by diameter ratio5xD
Flute length5.0394
Number of flutes2
Overall length7.6378
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in5/8
Shank length2.5984
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
