Sumitomo

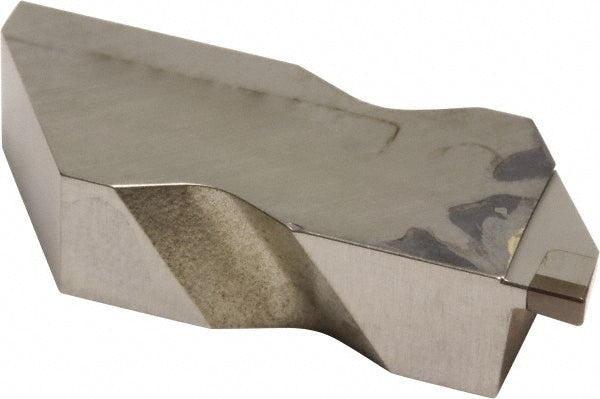

ISO 13399 CBN Insert, Grade BN2000 - Sumitomo U103843
MFR# U103843ISO/ANSI# ISO 13399Series SumiNotch
$107.87List $138.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeBN2000
MaterialCBN
Description
The Sumitomo U103843 is a ISO 13399 cbn indexable insert, grade BN2000. Suited for steel.
Specifications
Ansi codeSG-3047R
Corner radius0.0050 - 0.0100
Cutting height0.3440
Cutting width0.047
Full radiusNo
Gage diameter0.3750
Insert handNeutral
Insert materialCBN
Insert size3047
Insert size code3047
Insert styleSG
Iso codeISO 13399
Lead angle3
Manufacturer gradeBN2000
Maximum depth of cut0.0750
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall width0.195
Primary workpiece materialSteel
StandardsANSI; ISO 13399
