Sumitomo

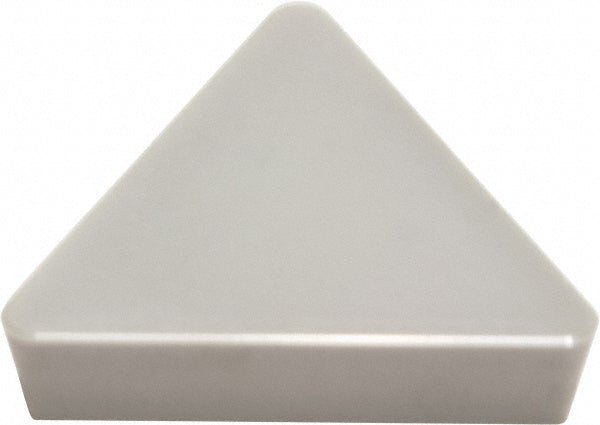

Triangle 3/8" IC Ceramic Insert, Grade SN2000K - Sumitomo U103946
MFR# U103946Series TPG
$16.44List $21.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeSN2000K
MaterialCeramic
Description
The Sumitomo U103946 is a ceramic indexable insert, grade SN2000K. Suited for cast iron.
Specifications
Ansi codeTPG322
Chip breakerN
Clearance codeP
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert materialCeramic
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Manufacturer gradeSN2000K
Primary workpiece materialCast Iron
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
